Model		J-SCR (cooling)	J-SCI
Shaking type		Rotation
Environmental temp. range		5℃ ~ 30℃
Overall size(W×D×H) mm		1,130×810/900×980/1,050	1,130×810/900×780/850
Chamber size(W×D×H) mm		750×710×400
Plat-form size(W×D) mm		670×630
Temperature	range	4.0℃ ~ 60.0℃	Ambient+5.0℃ ~ 60.0℃
	accuracy	±0.5℃ at 37.0℃
	uniformity	±1.0℃ at 37.0℃
	controller	PID controller
	regulator	SSR type
Thermocouple		Pt 100 ohms
Heater W		1,000	800

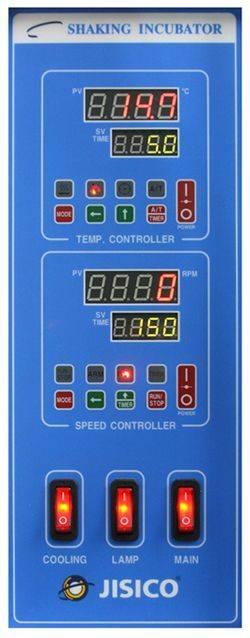

Shaking	controller	Dial knob / digital display
	speed rpm	35 ~ 300
	stroke	30
	capacity(load)	250㎖ Erlenmeyer flask×42ea or 500㎖ Erlenmeyer flask×30ea(option)
	motor W	25
Refrigeration compressor Hp		1/2	NO
Circulation fan & motor		Ø100mm, 13Wx3ea	Ø100mm, 13Wx3ea
Insulation		Polystyrene foam
Observation window		Reinforced glass 5T
Door		Steel plate with powder coated finish
Lamp		15Wx1ea
Safety device		ELB, overheating protection system
Material	interior	Stainless steel plate
	exterior	Steel plate with powder coated finish
Power source & consumption		AC 220V 60Hz 1phase 7.6A	AC 220V 60Hz 1phase 4.1A
Net weight kg		190	149
