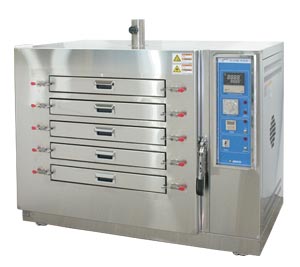

[ Option : 5 door ]

[ Option : LCD programmble controller ]

Model		J-407SCO	J-407MCO
Type		Forced convection system
Environmental temp. range		5℃ ~ 40℃
Overall size(W×D×H) mm		1,140×650×825	1,290×800×1,025
Chamber size(W×D×H) mm		450×450×450	600×600×600
Capacity ℓ		91	216
Temperature	range	Ambient+10℃ ~ 200℃
	using range	50℃ ~ 150℃
	accuracy	±0.5℃ at 100.0℃
	uniformity	±1.0℃ at 100.0℃
	controller	PID controller
	regulator	SCR type
Thermocouple		K type(CA)
Heating-up time		Reaches 100℃ within 15min.
Heater W		2,000	3,000
Circulation fan & motor		Ø340mm, 90W
Filter		HEPA filter (99.97% efficient on particle of 0.3㎛)
Filter size (W×D×H) mm		450×450×75	600×600×75
Insulation		Glass wool and ceramic wool
Observation window		Reinforced glass 5T
Timer		99hr 59min. or infinity
Door packing		High temperature grade foamed silicon rubber
Safety device		An electric leakage breaker (ELB), overheating protection.
Shelves		3ea	3ea
Ventilation slide mm		Ø80×1ea
Material	interior	Stainless steel plate
	exterior	Stainless steel plate
Power source & consumption		AC 220V 50/60Hz 1phase	AC 220V 50/60Hz 1phase
Net weight kg		125	165
Certification		CE

※ 상기 사양은 무부하상태에서의 성능이며, 성능향상을 위하여 디자인과 내부구조는 변경될 수 있습니다.
※ Option : LCD programmable controller
