Water bath

Home > Products > Water bath > Soxhlet water bath

Product :	Soxhlet water bath
Model :	J-BS3D

● Microprocessor PID auto-tuning controller with digital setting and display.

● The upper parts and bath are made of stainless steel.

● Digital readout displays pre-set temperature and current operating temperature.

● User-friendly magnetic water drain installed.

c-030-450 s.jpg

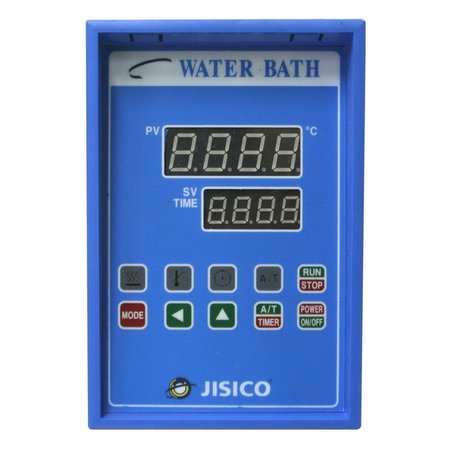

[ PID controller ]

Model J-BS3D

Type 6 hole opening type

Overall size (W×D×H)

mm

1,080×230/260×220/870

Bath inner size (W×D×H)
mm
890×170×130

Capacity
ℓ
19

Temperature range Ambient+5℃ ~ 100℃

accuracy ±0.1℃ at 50.0℃

controller PID controller

regulator SSR type

Thermocouple Pt 100 ohms

Heater(sheath)
W
2,000

Safety device

Self diagnosis function (Mormory error, temp. overheating,
SSR short circuit, Sensor short circuit)

Material interior Stainless steel plate

exterior Steel plate with powder coated finish

Power source & consumption

AC 230V 50/60Hz 1Ø

Net weight
kg
20.7

※ Information, design and specification are subject to change without prior notice.
※ Accessory : stand & clamp holder (6set).
※ Option : Soxhlet extractors, soxhlet flasks.
