Water bath

Home > Products > Water bath > Immersion circulating water bath

Product :	Immersion circulating water bath
Model :	J-IWB1, J-IWB2, J-IWB3, J-IWB4

● Microprocessor PID auto-tuning controller with digital setting and display.

● Control head is detachable from water bath, and can use with other type of water bath.

● Low water level sensor gives out alarm and cuts off power to heater automatically to prevent heater damage.

● Circulation pump ensures uniform temperature in a reservoir.

● It is certified the CE certification.

J-IWB-sharp 450.jpg
[ Control head ]

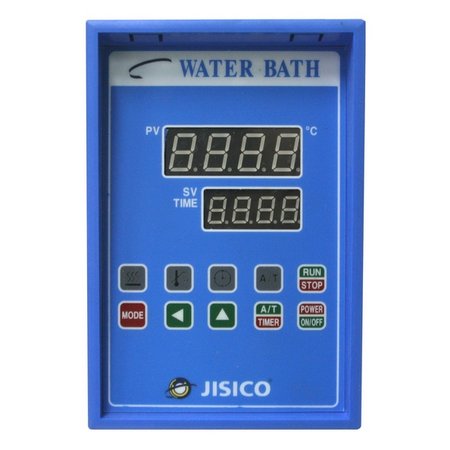

c-030-450 s.jpg
[ PID controller ]

Model J-IWB1 J-IWB2 J-IWB3 J-IWB4

Type Circulating system

Size

bath inner(W×D×H)

mm

330×300×150

500×300×150

500×300×200

650×300×200

overall(W×D×H)

mm

360×330×200

530×330×200

530×330×250

710×360×270

control head
(W×D×H)

mm

140×290×325

Capacity
ℓ
15 22 30 39

Temperature range Ambient+5℃ ~ 90℃(Max.)

accuracy
±0.1℃ at 50.0℃ (22ℓ model)

controller PID controller

regulator SSR type

Thermocouple Pt 100 ohms

Heater(sheath)
W
2,000

Circulating pumping capacity

ℓ/min
10

Circulating motor

W

40

Safety device
Self diagnosis function (Memory error, temp. overheating,
SSR short circuit, Sensor short circuit), ELB.

Material interior Stainless steel plate

exterior Steel plate with powder coated finish

pump

Stainlss steel

Power source & consumption
AC 230V 50/60Hz 1phase

Net weight(include head)
kg
9 10.2 13 16.2

※ Information, design and specification are subject to change without prior notice.
※ Option : Lid
