Water bath

Home > Products > Water bath > Precision water bath

Product :	Precision water bath
Model :	J-PWB1, J-PWB2

● PID auto-tuning controller maintains uniform temperature for long periods.

● Digital readout displays pre-set temperature and current operating temperature.

● Settings for the temperature and timer can be easily done with soft touch key pads.

● Sight glass is installed (J-PWB2)

[ J-PWB1, option : Lid ]

c-030-450 s.jpg

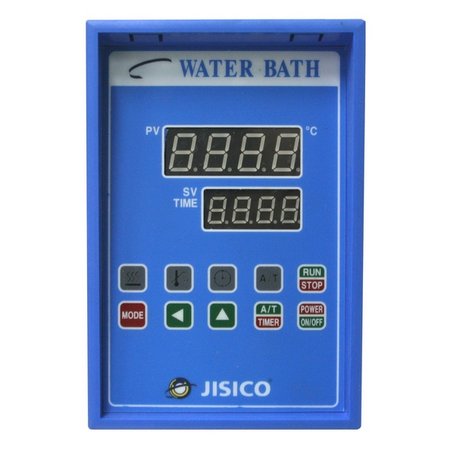

[ PID controller ]

Model

J-PWB1

J-PWB2

Type

Circulating system

Size

bath inner(W×DxH)

mm

350×300×150

450×350×250

overall(W×D×H)

mm

530×360×250/340

650×430×370/460

Capacity
ℓ

15.7

39

Temperature

range

Ambient+5.0℃ ~ 90.0℃(Max.)

accuracy

±0.5℃ at 50.0℃

controller

PID controller

regulator

SSR type

Thermocouple

Pt 100 ohms

Heater(sheath)

W

1,500

3,000

Pumping

Capacity
ℓ/min

10

Motor

W

60

Safety device

Self diagnosis function(Memory error,
Temp. overheating, SSR short circuit,
Sensor short circuit), ELB.

Material

interior

Stainless steel plate

exterior

Stainless steel plate(hair line)

Power source & consumption

AC 230V 50/60Hz 1phase

AC 230V 50/60Hz 1phase

Net weight

kg

-

25.5

※ Information, design and specification are subject to change without prior notice.
※ Option : Lid
