Incubator

Home > Products > Incubator > Inspissator

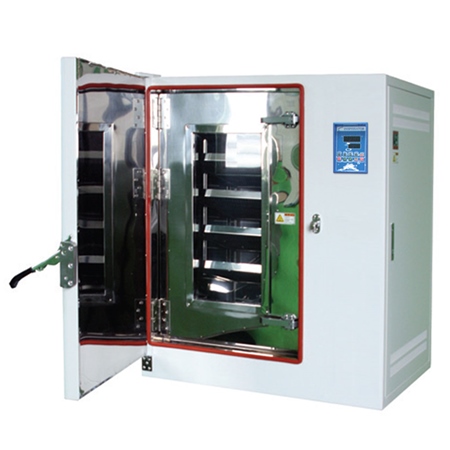

Product :	Inspissator
Model :	J-IWL

● Microprocessor PID auto-tuning controller with digital setting and display.

● Over temperature protection circuit prevents overheating and protects specimen.

● Inner door with tempered glass prevents heat loss and provides convenient observation of the chamber.

● Five angle-adjustable shelves are installed.

Model J-IWL

Overall size (W×D×H)
mm
800×720×1,310/1,750

Chamber size (W×D×H)
mm
450×500×750

Capacity

ℓ

169

Temperature

range

95℃(Max.)

accuracy

±0.5℃ at 90.0℃

controller

PID controller

regulator

SSR type

Thermocouple

Pt 100 ohms

Heater(sheath)
W
2,000

Safety device

Self diagnosis function(Memory error, Temp. overheating,
SSR short circuit, Senser short circuit), ELB.

Shelves

5ea

Material

interior

Stainless steel plate

exterior

Steel plate with powder coated finish

Power source & consumption

AC 230V 50/60Hz 1phase

Net weight
kg
136

※ Information, design and specification are subject to change without prior notice.
