Mills & Crusher

Home > Products > Mills & Crusher > Shatter box

Product :	Shatter box
Model :	J-MSB-S

● Used for preparing samples for testing physical properties for active carbon, limestone, sand, ceramic material & minerals by shattering finely.

● User-friendly design for easy installation and removal of vessel.

● Shatters and crushes in a short time.

c-034-300 s.jpg

c-033-300 s.jpg

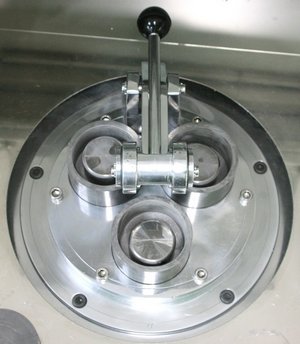

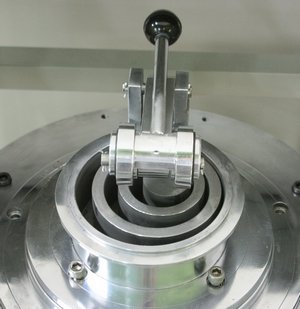

[ Standard vessel ]

[ Option : Tungsten vessel ]

Model J-MSB-S

Type
Shattering system

Size

overall (W×D×H)
mm

820×635/675×1,015

vessel(in)(Ø×H)
mm

125×45

outer rotator
mm
ID: Ø74.5 × OD: Ø93.5 × 40H

inner rotator
mm
Ø58.5×40H

Capacity

g

50~200/batch

Motor (6p)

Hp

1

Particle size

before shatter

mm

Ø5 ~ 7 mm

after shatter

100 ~ 325 mesh

Material vessel rotator SKH (high speed tool steel)

body Steel plate with powder coated finish

Power source & consumption
AC 230V 50/60Hz 3Ø

※ Information, design and specification are subject to change without prior notice.
※ Option : Tungsten vessel
