Fume hood

Home > Products > Fume hood > Fume hood

Product :	Fume hood
Model :	J-NFH series

● Epoxy resin top plate & sink (DURCON Inc. USA) guarantees corrosion free fume hood.

● All the internal fixtures including water & gas line, light source and power outlet are made of anti-corrosive materials.

● Powerful exhaust fan motor offers efficient and quick ventilation.

● Window with transparent safety glass (5mm) provides clear view.

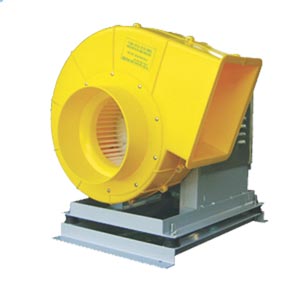

[ Blower motor ]

Model J-NFH120 J-NFH150 J-NFH180

Size

wide

mm

1,218

1,524

1,829

depth

mm

787

height

mm

2,300

exhaust

mm

Ø200

Working table

Epoxy resin top plate and sink

Window

Safety clear glass(5mm),
open/close : balance weighing type

Utility

water cock

1

2

2

gas cock

1

2

2

vacuum cock

1

2

2

socket

1

2

2

Blower motor

Hp

2

Material

interior

Phenolic treated kraft sheets (LAMIS)

exterior

body

Stainless steel plate with powder coated finish & wooden door

cabinet

Steel plate with powder coated finish

Power source & consumption

AC 230V 50/60Hz 3phase

※ Information, design and specification are subject to change without prior notice.
